Boat House Lifts

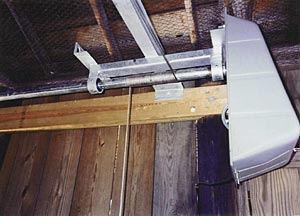

Our boat house lifts can be installed with one or two electric motor lift systems. Hoist load is dependent on the boat house construction and the weight of the vessel. Drive units are side mounted for easy maintenance and elimination of grease dropping on the boat, as with center mounted drives. Overhead beams mount on the top plate along side rafters or directly on top of pilings. Pulleys and drive shaft attachments are welded to overhead beams adding to the level of the quality of the boat house boat lift.



Specifications

Weight Capacity:
4,000 lbs. to 10,000 lbs.
Upper beam Length:
12' to 13'
Cradle Beam Length:
9’ to 10’
Each Motor:
GFCI protected

Boat Lift Features

  • Hot dipped galvanized steel construction
  • Stainless steel cables
  • Machined aluminum cable winders
  • Enclosed hoist motors
  • Galvanized gear plates
  • Enclosed covers
  • Nylon, aluminum, or stainless sheaves
  • Adjustable bunk and guide post systems
  • Standard or custom design
east coast boat lifts

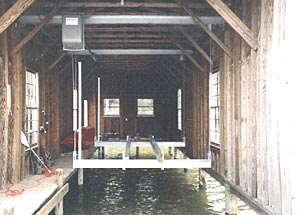

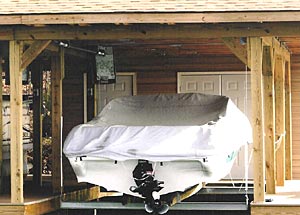

Boathouse Lifts

Boathouse Lifts

Boathouse Lifts
east coast boat lifts

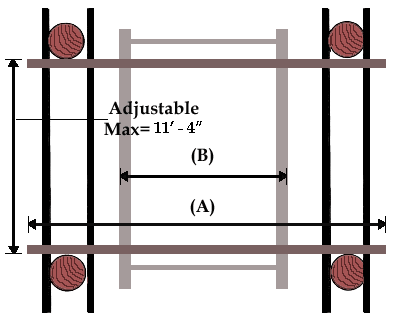

BOATHOUSE SYSTEMS - PILING CONFIGURATION
BOATHOUSE SYSTEMS - PILING CONFIGURATION
Lift
Capacity
Dimension
A - width
Dimension
B - width
4,000 lbs
12'-0"
9'-0"
5,600 lbs
12'-0"
9'-0"
7,000 lbs
13'-0"
10'-0"
8,000 lbs
13'-0"
10'-0"
10,000 lbs
13'-0"
10'-0"


east coast boat lifts
east coast boat lifts east coast boat lifts east coast boat lifts
east coast boat lifts OVERHEAD BEAM SYSTEMS - SPECIFICATIONS east coast boat lifts
east coast boat lifts east coast boat lifts east coast boat lifts
east coast boat lifts
Lift
Capacity
Upper
I-Beams
Cradles
I-Beams
Cable
Size
Guide
Post
Height
Drive
Shaft
Size
Cable
Winders
Diam.
Motor
Drive
Pulley
Hoist
Drive
Pulley
Hoist
Gear
Ratio
Motors
Travel
Speed
4,000
lbs
2 Each
S4x
7.7x12'
2 Each
S4x
7.7x9'
stainless
steel x 2
1/4x45'
straight
pull
1-15/16"
O.D.
Sch.40
Galv.
Pipe
2-3/8"
O.D.
Sch.80
Aluminum
Pipe
2"
Diam.
8"
Diam.
96
to 1
1x
3/4hp
A.O.Smith
120v/12a
240v/6.1a
3 ft
per
minute
5,600
lbs
2 Each
W6x
12x12'
2 Each
W6x
12x9'4"
stainless
steel x 2
1/4x75'
double
cable
80"
1-15/16"
O.D.
Sch.40
Galv.
Pipe
2-3/8"
O.D.
Sch.80
Aluminum
Pipe
2"
Diam.
8"
Diam.
96
to 1
1x
3/4hp
A.O.Smith
120v/12a
240v/6.1a
2 ft
per
minute
7,000
lbs
2 Each
W6x
12x13'
2 Each
W6x
12x10'
stainless
steel x 2
1/4x75'
double
cable
80"
1-15/16"
O.D.
Sch.80
Galv.
Pipe
2-3/8"
O.D.
Sch.80
Aluminum
Pipe
2"
Diam.
8"
Diam.
96
to 1
1x
1 hp
A.O.Smith
120v/13.6a
240v/6.4a
2 ft
per
minute
8,000
lbs
2 Each
W6x
12x13'
2 Each
W6x
12x10'
stainless
steel x 4
1/4x30'
double
cable
80"
1-15/16"
O.D.
Sch.40
Galv.
Pipe
2-3/8"
O.D.
Sch.80
Aluminum
Pipe
2"
Diam.
8"
Diam.
96
to 1
2x
3/4hp
A.O.Smith
120v/12a
240v/6.1a
2 ft
per
minute
10,000
lbs
2 Each
W6x
12x13'
2 Each
W6x
12x10'
stainless
steel x 4
5/16x30'
double
cable
80"
1-15/16"
O.D.
Sch.40
Galv.
Pipe
2-3/8"
O.D.
Sch.80
Aluminum
Pipe
2"
Diam.
8"
Diam.
96
to 1
2x
3/4hp
A.O.Smith
120v/12a
240v/6.1a
2 ft
per
minute
