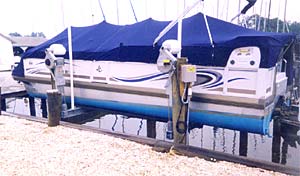

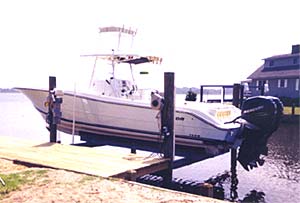

Low Profile Boat Lifts
with E-Drive

The low profile boat lift systems we manufacture were designed to eliminate the upper or overhead beams and allow for easy access on and off your vessel, which are only inches away from your pier. Drive units are mounted on the pier side for easier service, and there is no underwater wiring. The two electric motor lift systems allows for easy leveling of boat, front to back. This is an aesthetically pleasing boat lift.



Specifications

Weight Capacity:
8,000 lbs. to 16,000 lbs.
Piling Diameter Requirement:
8” plus
Piling Height:
36" to 48" above deck
Each Motor:
GFCI protected
Totally enclosed
120v/12.1a or 240v/6a motors available.

Boat Lift Features

  • Hot dipped galvanized steel construction
  • Stainless steel cables
  • Stainless and galvanized hardware
  • E-Drive or Flat Plate Drive systems
  • Enclosed covers
  • Nylon or stainless sheaves
  • Adjustable bunk and guide post systems
  • Standard or custom design
east coast boat lifts
Low Profile Boat Lifts

Low Profile Boat Lifts
east coast boat lifts

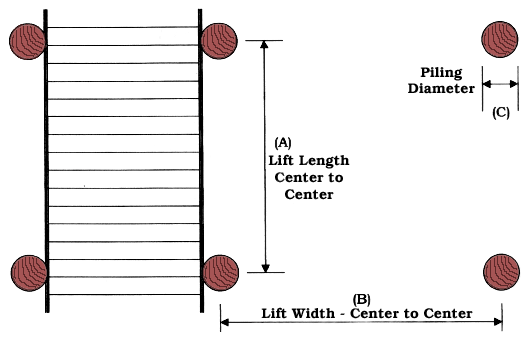

LOW PROFILE SYSTEMS - PILING CONFIGURATION
LOW PROFILE SYSTEMS - PILING CONFIGURATION
Lift
Capacity
Dimension
A - length
Dimension
B - width
Piling
Diameter
8,000 lbs
11'-0"
13'-0"
8" min
10,000 lbs
11'-6"
13'-0"
10"
12,000 lbs
11'-6"
13'-0"
10"
16,000 lbs
12'-0"
15'-0"
10"

Please check with East Coast Boat Lifts to confirm piling configurations as improvements and product modifications may cause piling specification to change.



east coast boat lifts
east coast boat lifts east coast boat lifts east coast boat lifts
east coast boat lifts
LOW PROFILE FLAT PLATE SYSTEMS - SPECIFICATIONS
east coast boat lifts
east coast boat lifts east coast boat lifts east coast boat lifts
east coast boat lifts
Lift
Capacity
Cradles
I-Beams
Drive
Drums
Bear-
ings
Drive
Shaft
Size
Cable
Size
Guide
Post
Height
Hoist
Gear
Ratio
Motors
Travel
Speed
8,000
lbs
4 pilings
2 Each
W6x
12x13'
2 each
8x11.5x27"
channel
4-
1-15/16"
4-Bolt
Flange
2-3/8"
O.D.
Sch.80
Galv.
Pipe

2 cables
1/4"x30' ss
w/thimble,
2 cables
1/4x50' ss

80"
384
to 1
2 x 3/4hp
A.O.Smith
120v/12a
240v/6.1a
2 ft
per
minute
10,000
lbs
4 pilings
2 Each
W6x
16x13'
2 each
8x11.5x27"
channel
4-
1-15/16"
4-Bolt
Flange
2-3/8"
O.D.
Sch.80
Galv.
Pipe
2 cables
5/16"x30' ss
w/thimble,
2 cables
5/16x50' ss
80"
384
to 1
2 x 3/4hp
A.O.Smith
120v/12a
240v/6.1a
2 ft
per
minute
12,000
lbs
4 pilings
2 Each
W8x
15x13'
2 each
8x11.5x27"
channel
4-
1-15/16"
4-Bolt
Flange
2-3/8"
O.D.
Sch.80
Galv.
Pipe
2 cables
5/16"x30' ss
w/thimble,
2 cables
5/16x50' ss
120"
480
to 1
2 x 1 hp
A.O.Smith
120v/13.6a
240v/6.4a
1.8 ft
per
minute
16,000
lbs
4 pilings
2 Each
W8x
15x15'
2 each
10x15.3x27"
channel
4-
1-15/16"
4-Bolt
Flange
2-3/8"
O.D.
Sch.80
Galv.
Pipe
2 cables
5/16"x46' ss
w/thimble,
2 cables
5/16x64' ss
120"
480
to 1
2 x 1 hp
A.O.Smith
120v/13.6a
240v/6.4a
1.5 ft
per
minute
